⚡️ Power On/Off

To turn the keyboard on or off, use the toggle located on the side of each unit.

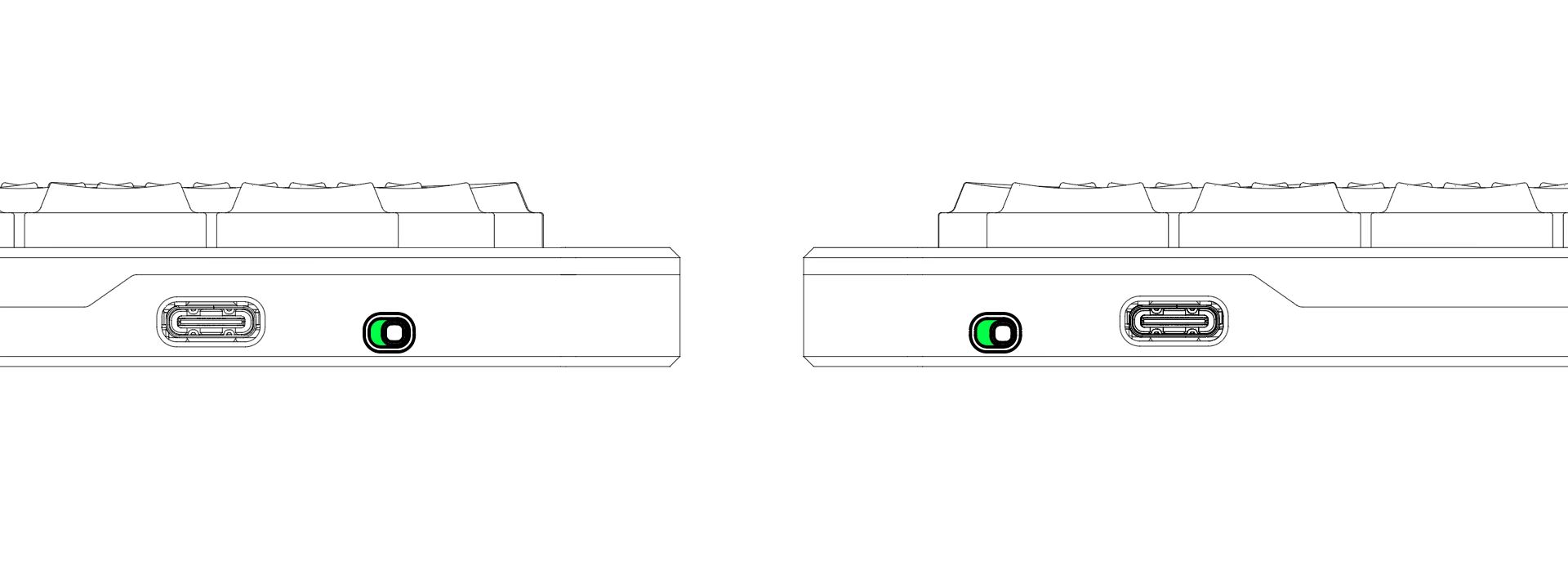

• Turn ON: Slide the toggle to the Right.

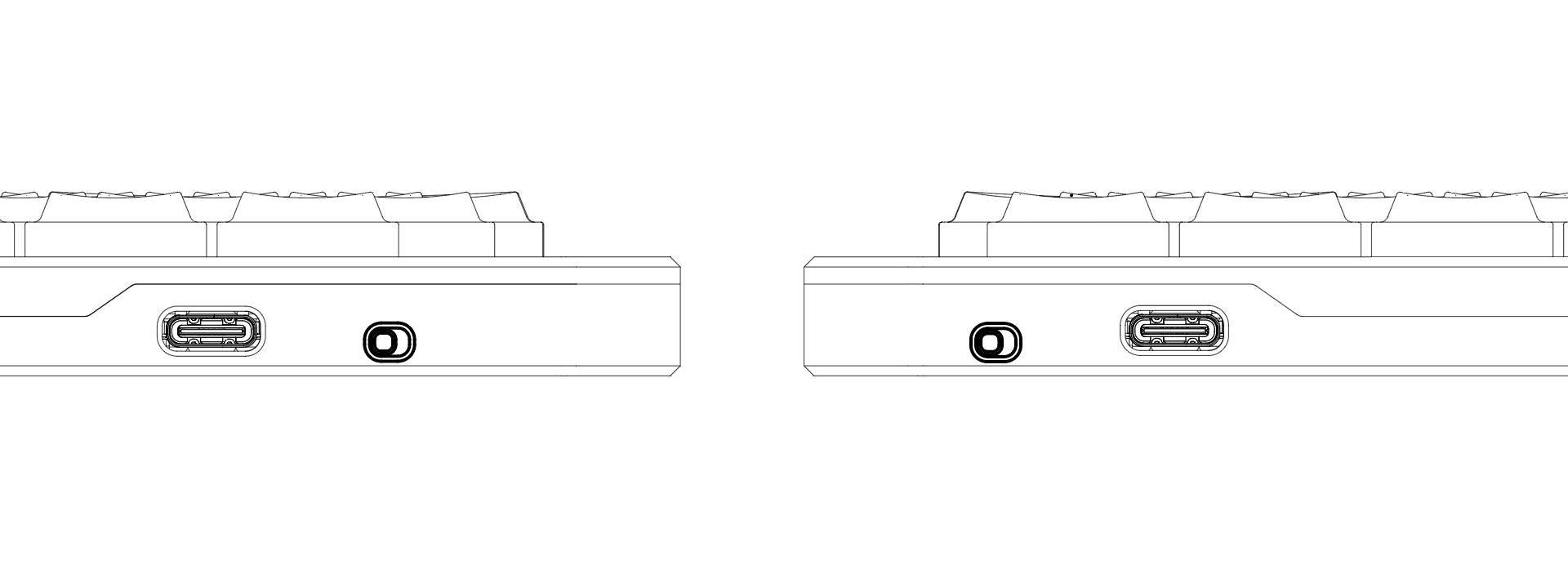

• Turn OFF: Slide the toggle to the Left.

(Note: Directions are based on looking directly at the toggle)

💡 Indicator Lights

Left Hand (Central):

The right light indicates the Bluetooth connection status, the left light indicates the battery level and peripheral connection status

Light Position	Color	Behavior	Meaning
Right	🟢 / 🔵 / 🔴	Breathing	Bluetooth profile 1/2/3 is waiting for pairing
Right	🟢 / 🔵 / 🔴	Solid -> Off	Bluetooth profile 1/2/3 connects successfully
Left	🔴	Blinking	Low battery
Left	🟢	Breathing	Charging
Left	🔵	Breathing	Searching for Right Hand (Peripheral)

Right Hand (Peripheral):

The right light indicates the central connection status, the left light indicates the battery level.

Light Position	Color	Behavior	Meaning
Right	🔵	Breathing	Searching for Left Hand (Central)
Left	🔴	Blinking	Low battery
Left	🟢	Breathing	Charging

🛜 Connectivity

USB Connection (Wired Mode)

1. Connect the USB data cable to the Left Hand (Central) only.
2. The USB port on the Right Hand is for charging only and does not transmit data.

Bluetooth Connection

Elytra supports up to 3 devices.

• Switching Devices: Open Vial, go to the User tab, and assign keys to BT0, BT1, and BT2. Use these keys to switch between Bluetooth profiles.

Connection Mode Switching

By default, Elytra is set to USB Priority mode. You can toggle modes via the Switch Output button in the Vial User tab.

• USB Priority Mode (Default):
  • If USB is plugged in: Keyboard communicates via USB.
  • If USB is unplugged: Automatically switches to Bluetooth.
• Bluetooth Priority Mode:
  • Bluetooth is always the primary connection.
  • Even if plugged in via USB, the cable will only charge the battery; keystrokes are sent via Bluetooth.

⌨️ Key Remapping

Elytra supports real-time key remapping via Vial:

1. Open vial.rocks in a Chromium-based browser (Chrome, Edge)
2. Click "Start Vial" and select "Elytra" from the device list
3. Once connected, you can customize your layout instantly

Note: Connection may occasionally fail due to signal interference. If this happens, refresh the page and retry.

💤 Sleep Mode

Elytra enters sleep mode automatically after a period of inactivity.

• When Connected: Bluetooth remains active. Waking up is instant (no keystrokes lost).
• When Broadcasting (Not Connected): The keyboard turns off radio activity. Press any alphanumeric key to wake it up and make it discoverable again.

🔗 Central & Peripheral Pairing

Automatic Pairing (Out of the Box)

• The Left and Right units are pre-paired. They will automatically connect to each other when powered on. No setup is required.

Unpairing (Resetting Connection)

Only perform this if you need to replace a unit or fix a connection issue between halves.

1. Open Vial and navigate to the User tab.

2. Assign the Clear Peer function to a key on your layout.



3. Press and hold the "Clear Peer" key for 8 seconds.

4. Power Cycle Required:

   • Unplug the USB cable.
   • Turn off the power switch.
   • Wait 3 seconds, then turn it back on.

Re-pairing

After unpairing and restarting, both units will enter "Search Mode" (Blue breathing light). They will automatically find each other and re-pair.

Tip: If pairing multiple sets of keyboards, power on only one pair at a time to prevent cross-connection between different splits.
